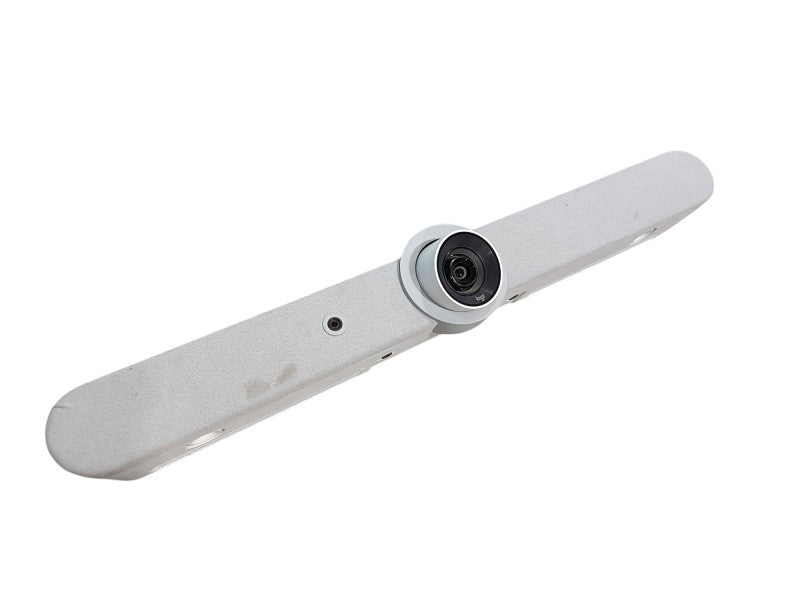

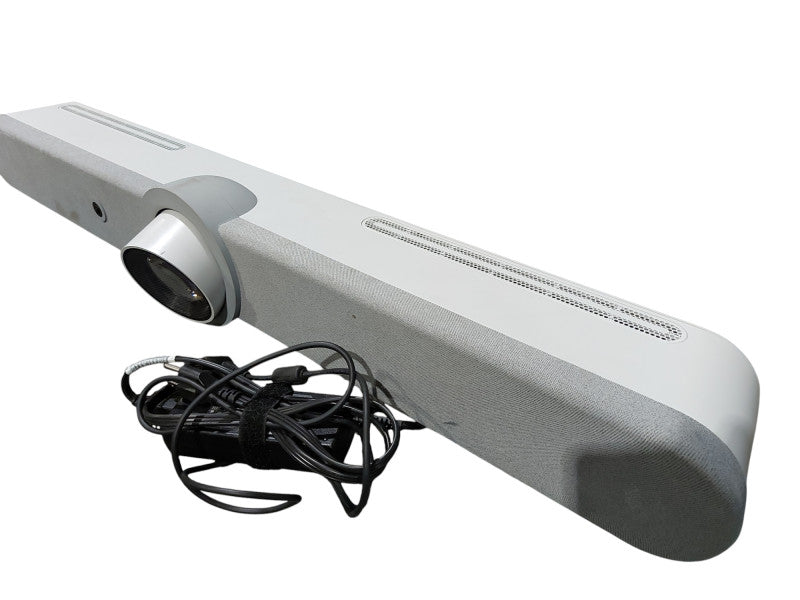

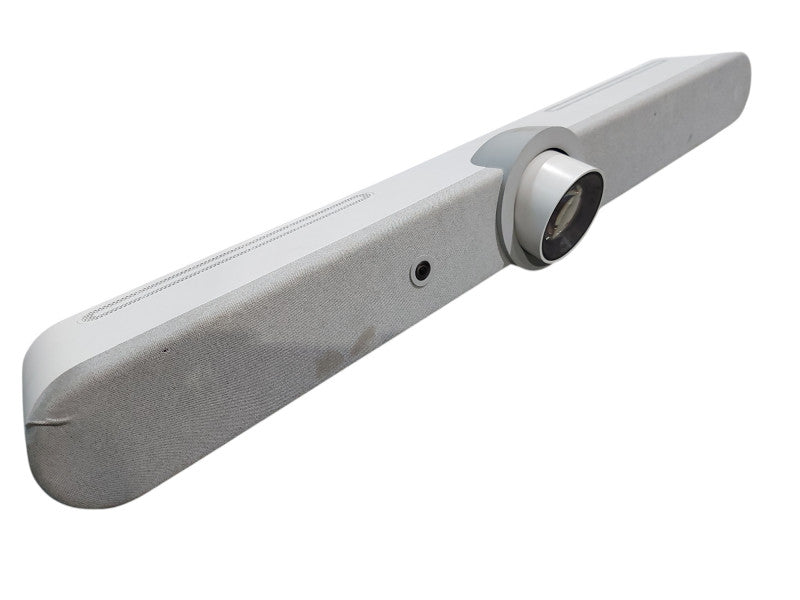

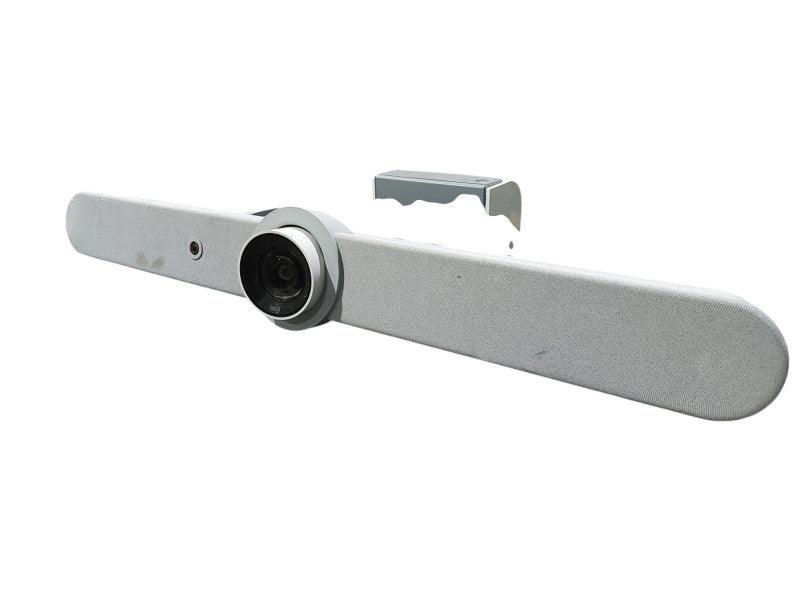

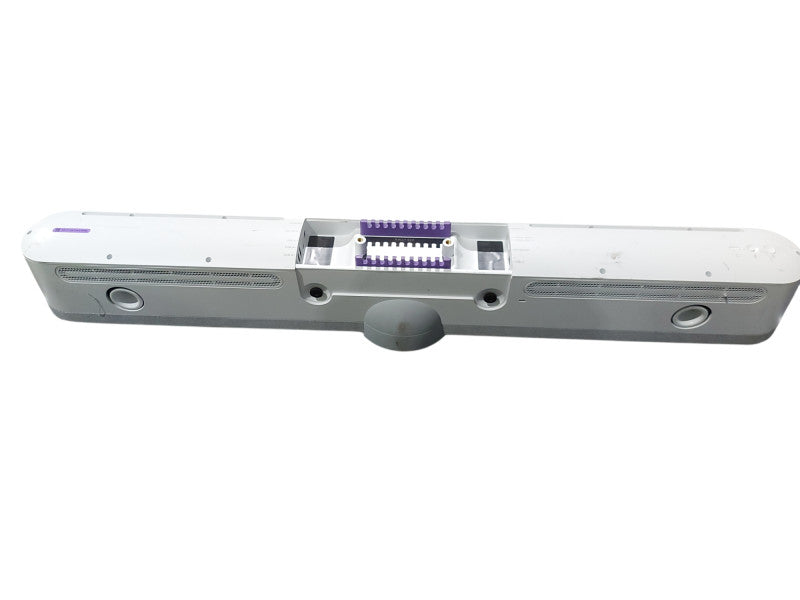

LOGITECH VR0019 Rally Bar Camera and Speakerphone

\n
• \nGraphite : 960-001308\n
\n
• \nTAA Compliant : 960-001564\n
\n

Certifications & Compatibility

\n
• For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications
\n
• Microsoft Teams Rooms on Android 1For medium sized rooms\n
\n
• Microsoft Teams Rooms on Windows 2For medium sized rooms\n
\n

General Specifications

\n
• \nBuilt-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
\n
• \nEnclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
\n
• \nDevice Management: Logitech Sync
\n
• \nDisplays Supported: 2
\n
• \nDisplay Resolution: Up to 1080p
\n
• \nNetwork Protocol Support: IPv4, IPv6
\n
• \nProxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
\n

Camera

\n
• \nResolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
\n
• \nPan: Motorized ±25°
\n
• \nTilt: Motorized ±15°
\n
• \nZoom: 15X HD zoom (5X optical and 3X digital)
\n
• \nDiagonal Field of View: 90°
\n
• \nHorizontal Field of View: 82.1°
\n
• \nVertical Field of View: 52.2°
\n
• \nTotal Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical
\n

Speakers

\n
• \nDrivers: 2x 70 mm
\n
• \nSensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
\n
• \nRated Power: 8W
\n
• \nTHD: 1kHz < 2% at 1W
\n
• \nSpeaker Sampling Rate: 48 kHz
\n
• \nImpedance: 4 Ohms
\n

Microphones

\n
• \nFrequency Response: 90Hz – 16kHz
\n
• \nSensitivity: >-36dBFS +/-1 dB @ 1Pa
\n
• \nMicrophone data rate output: 48KHz
\n
• \nPickup Range: Up to 7 m
\n
• \nBeamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
\n
• \nAudio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
\n
• \nNoise suppression: AI based de-noising algorithm
\n
• \nAdd-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
\n

RightSense™ Technologies

\n
• \nRightLight: Renders natural skin tones for each participant
\n
• \nRightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
\n
• \nRightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
\n
• \nGrid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
\n

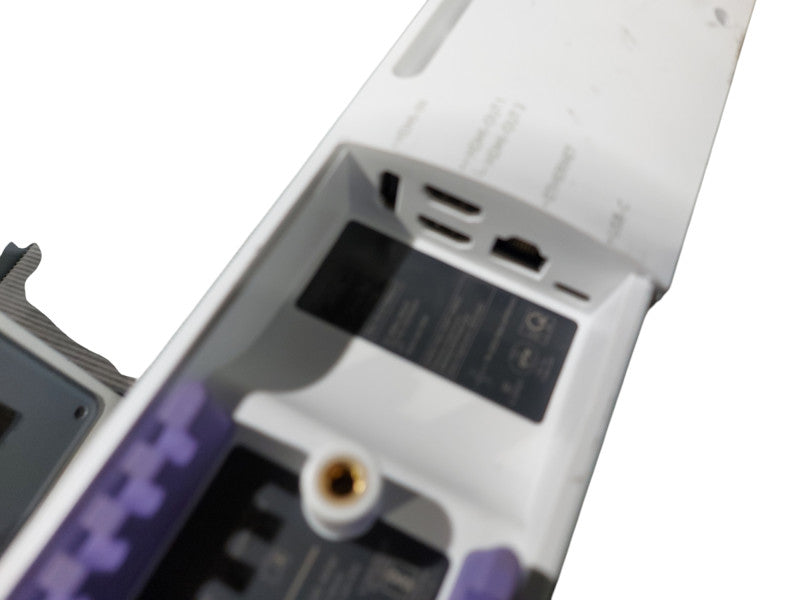

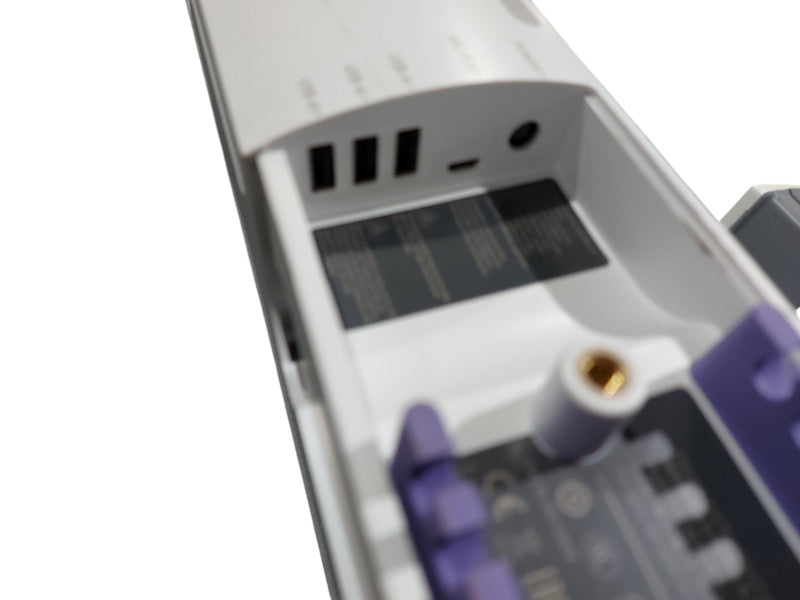

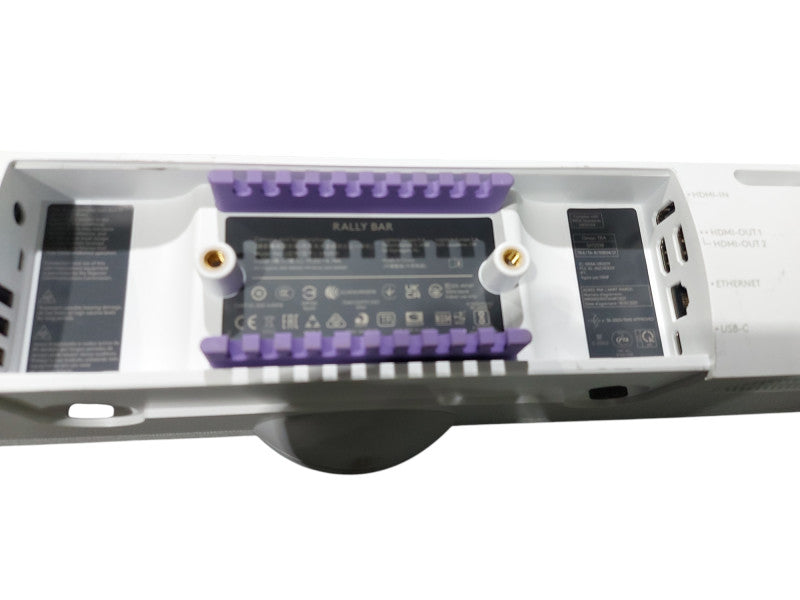

Interfaces

\n
• \nHDMI Out: 2 (up to 1080p)
\n
• \nHDMI In: 1
\n
• \nUSB: 3x Type A, 1x Type C
\n
• \nNetwork: 10/100/1G Ethernet
\n
• \nWiFi: 802.11a/b/g/n/ac
\n
• \nExternal Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
\n
• \nRemote Control: Bluetooth® Low Energy
\n

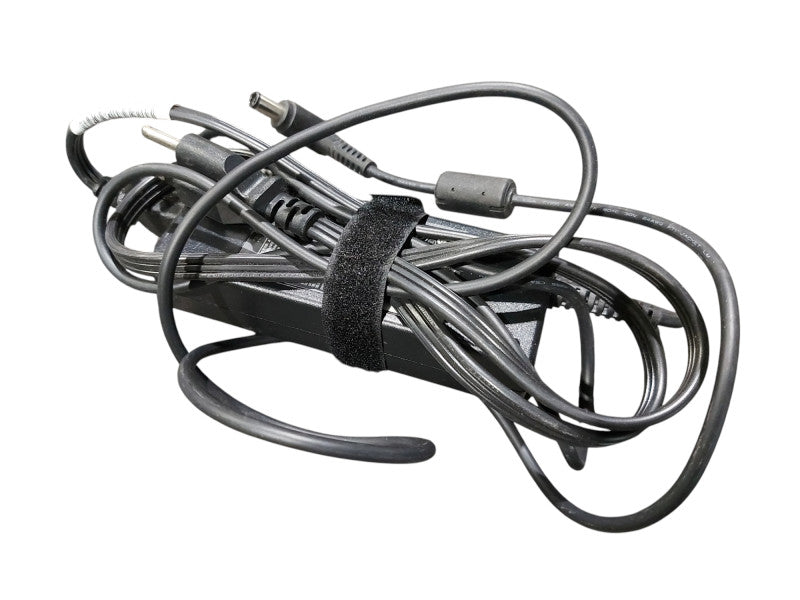

Power & Cables

\n
• \nPower supply: Auto-sensing
\n
• \nOperating Voltage/Power: 100-240V, 19V, 4.74A
\n
• \nPower Supply Dimensions: 127 mm x 51 mm x 30 mm
\n
• \nDC Cable: 1.5 m
\n
• \nAC Cable: 1 m
\n
• \nHDMI 1.4 Cable: 2 m
\n
• \nUSB A to USB C 3.0 Cable: 2.2 m
\n

Environmental

\n
• \nOperating Temperature: 0 to 40°C
\n
• \nStorage Temperature: -40 to 70 °C
\n
• \nHumidity: 10 to 95%
\n
• \nBTU/hr: 57 idle, 64 in meeting
\n

Security

\n
• \nFull Disk Encryption: AES-128
\n
• \nData Encryption: Symmetric Keys, PKI
\n
• \nDevice Identity: Protected by device attestation
\n
• \nDevice Access: Authenticated using API
\n
• \nKey Protection: Arm TrustZone, RPMP
\n

Accessories

\n
• \nMounts: Wall Mount for Video Bars, TV Mount for Video Bars
\n
• \nAudio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
\n
• \nConnectivity: Logitech Strong USB (10m, 25m, 45m)
\n
• \nTouch Controller: Logitech Tap and Tap IP 3Compatibility may vary, see www.logitech.com/support/tap-compatibility for the latest information\n
